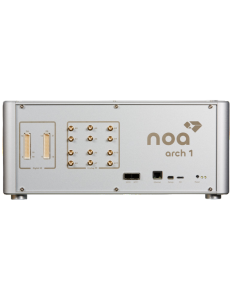

FPGA-Accelerated Real-Time Processing

• Powered by AMD/Xilinx Zynq™ UltraScale+™ MPSoC XCZU5EV-2SFVC784I
• High-speed parallel processing with deterministic execution
• Essential for time-critical applications in power electronics and automotive systems

High-Fidelity Analog & Digital I/O

• up to 12 14-bit 100 MSPS analog outputs
• up to 12 14-bit 100 MSPS analog inputs
• Sub-microsecond latency signal acquisition
• 52 configurable digital I/Os

Optimized for Power Electronics & Control Systems

• Real-time simulation of inverters, motor drives, and power grids with high-frequency switching capabilities
• Closed-loop control validation with ultra-low latency feedback mechanisms
• Supports high-speed PWM generation and synchronization with external controllers

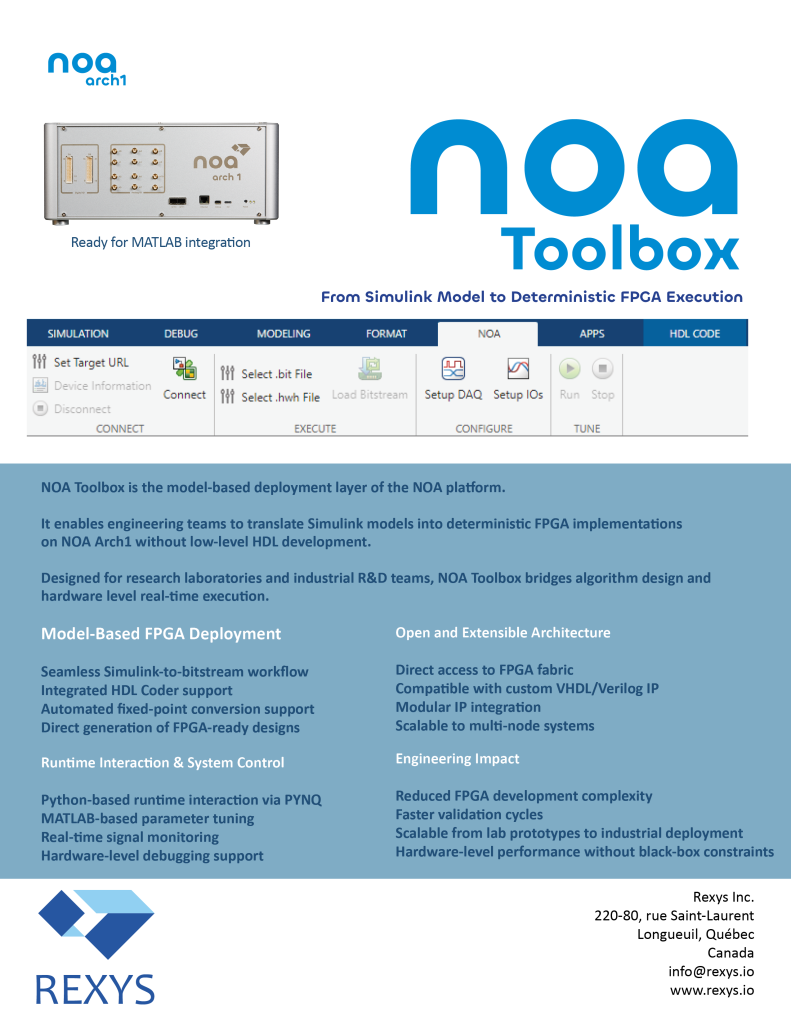

Seamless Software & Model Integration

• Pre-configured PYNQ 3.0 image included, providing an intuitive and streamlined setup
• Native support for MATLAB/Simulink, Python, and VHDL/Verilog for FPGA customization
• Free FPGA IPs provided

Scalable & Modular Architecture

• Designed for extensibility, supporting modular expansions for advanced applications
• FPGA reconfigurability allows for custom signal processing, model integration, and application-specific hardware acceleration

Enterprise-Grade Storage & Networking

• 256 GB NVMe SSD for high-speed data logging, enabling detailed real-time analysis
• Dual SFP+ 10 Gbps connectors for high-bandwidth networking and multi-node distributed HIL applications
• 1Gbps Ethernet link for seamless integration into industrial networks and cloud-based simulation workflows
